Vibration welding has established itself as a reliable joining method for thermoplastic components across automotive, aerospace, and industrial applications. Despite its widespread adoption and proven track record, misconceptions persist about whether the friction-based process degrades material properties or compromises joint integrity. These concerns often stem from misunderstandings about how the technology works and what happens to plastic materials during the welding cycle.
This article addresses common myths surrounding vibration welding, examines the scientific evidence, and provides clarity on the technology's actual impact on material performance.
Understanding the Vibration Welding Process

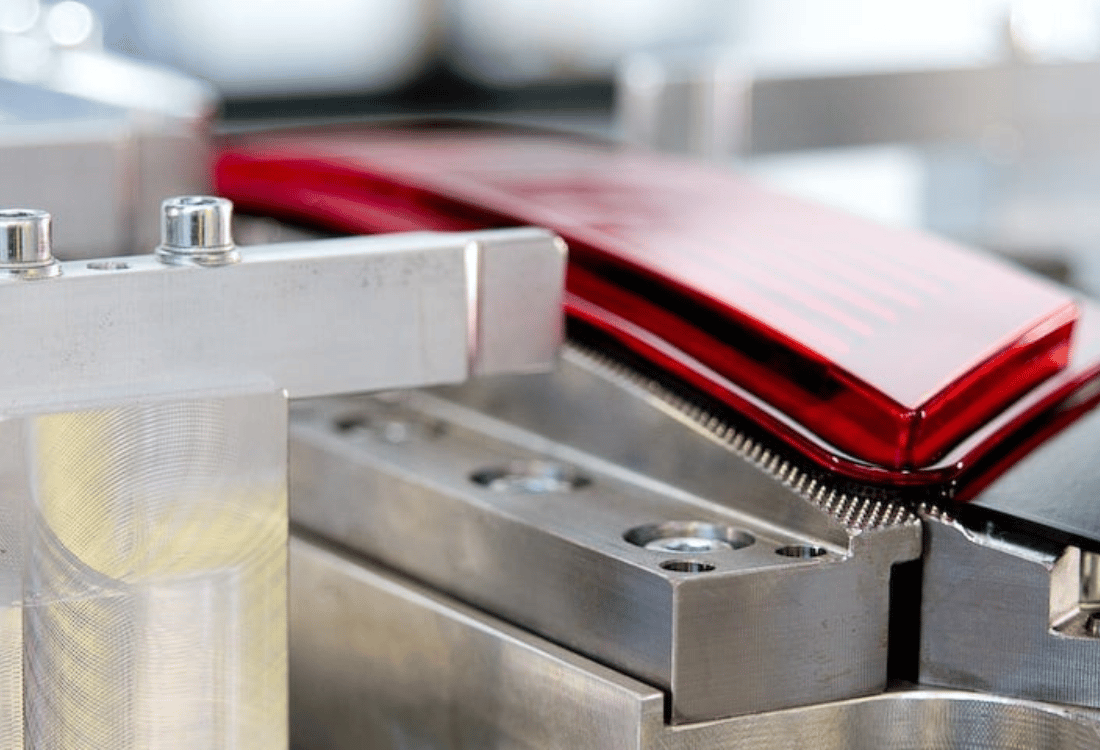

Before addressing specific concerns about material weakening, it's important to understand precisely what occurs during vibration welding. The process operates by pressing two plastic components together whilst subjecting them to linear mechanical vibrations, typically at frequencies between 100-240 Hz with amplitudes of 0.7-1.8mm. This controlled motion generates frictional heat at the interface, causing localised melting of the thermoplastic material.
The key distinction that addresses many concerns is that vibration welding is a localised heating process. Unlike methods that heat entire components, vibration welding concentrates thermal energy precisely at the joint interface. The material immediately adjacent to the weld experiences elevated temperatures for only a brief period – typically 1-3 seconds – before the vibration stops and cooling under pressure begins.
This localised, brief thermal exposure fundamentally differs from processes like oven heating or prolonged thermal cycling that can degrade polymer properties throughout a component. The bulk of the material in vibration welded assemblies never approaches melting temperature and therefore experiences no thermal degradation whatsoever.
Myth 1: Vibration Welding Degrades Polymer Molecular Structure
The Concern: Some engineers worry that the mechanical vibrations and frictional heating break polymer chains, reducing molecular weight and compromising material properties.
The Reality: Properly executed vibration welding does not cause significant polymer degradation. Thermoplastics are designed to withstand multiple melt-and-solidify cycles during processing – injection moulding itself subjects materials to higher temperatures for longer durations than vibration welding.
The temperatures generated at the weld interface during vibration welding remain well within the material's processing window. For most thermoplastics, vibration welding occurs at temperatures 20-40°C above the melting point – considerably lower than injection moulding temperatures, which typically run 40-80°C above melting point to ensure adequate flow.
Research examining molecular weight changes in vibration welded joints has found no measurable degradation in properly processed materials. The brief thermal exposure and protective atmosphere created by the molten material itself (which excludes oxygen) prevent the oxidative degradation that causes polymer chain scission. Materials prone to thermal degradation at processing temperatures would exhibit problems during initial moulding long before vibration welding becomes a concern.
Myth 2: Weld Joints Are Weaker Than Parent Material
The Concern: A persistent belief holds that welded joints inherently represent weak points in plastic assemblies, creating potential failure locations under stress.
The Reality: Well-designed and properly executed vibration welds routinely achieve strengths equal to or exceeding the parent material. This counterintuitive result stems from the molecular-level bonding that occurs during the welding process.
When molten polymer surfaces are brought together under pressure, polymer chains from each component intermingle and entangle across the interface. Upon cooling, these entangled chains create a continuous molecular structure that effectively eliminates the interface as a distinct entity. The resulting bond strength depends on the degree of molecular interdiffusion achieved during welding – not on any adhesive mechanism or mechanical interlocking.
Testing of vibration welded joints consistently demonstrates this principle. Tensile tests of properly welded assemblies typically result in material failure away from the weld interface, in the parent material itself. This failure mode proves definitively that the weld joint exceeds the strength of the surrounding material. Similarly, impact testing often shows that welded assemblies fracture through the bulk material rather than along the weld line.
The apparent contradiction between joints being "as strong as the parent material" and sometimes exceeding it has a logical explanation. During vibration welding, the molten material flows and reorients, often eliminating microscopic flaws and stress concentrations present in injection moulded components. Additionally, the pressure applied during welding can create slightly higher density in the weld zone, contributing to enhanced local properties.
Myth 3: Vibration Causes Damage Throughout the Component
The Concern: Engineers sometimes worry that the mechanical vibrations transmitted through components during welding cause microcracking, internal stress, or other damage extending beyond the immediate weld area.
The Reality: The vibrations used in the welding process are precisely controlled and do not cause damage to properly designed components. The frequencies employed (100-240 Hz) fall well below the resonant frequencies that could cause stress-related failures in typical thermoplastic parts.
Modern vibration welding equipment incorporates fixtures designed to support components and dampen vibration transmission away from the weld interface. The parts being welded are held securely, preventing excessive movement that could cause impact damage or stress concentration. The controlled nature of the process ensures that energy focuses on creating frictional heat at the interface rather than propagating destructively through the assembly.
Components designed for vibration welding incorporate features that accommodate the process mechanics. Adequate wall thickness near the joint, proper support geometry, and appropriate material selection all contribute to ensuring the welding process enhances rather than compromises component integrity.
It's worth noting that components successfully vibration welded regularly withstand subsequent processes including ultrasonic insertion of threaded inserts, mechanical assembly operations, and functional testing involving pressurisation or mechanical loading. If vibration welding caused widespread material damage, these subsequent operations would reveal stress cracking or premature failure – yet such problems are not observed in properly welded assemblies.
Myth 4: The Heat-Affected Zone Creates Weak Areas
The Concern: Some engineers express concern about the heat-affected zone (HAZ) adjacent to the weld, worrying that material properties degrade in this transition region.
The Reality: Whilst a heat-affected zone does exist in vibration welded assemblies, its impact on component performance is generally negligible. The HAZ in vibration welding typically extends only 1-2mm from the weld interface, and the thermal profile through this zone is gradual rather than creating sharp property transitions.
The temperatures in the HAZ never reach melting point – if they did, excessive flash formation would occur. Instead, this zone experiences warming that temporarily softens the material before rapid cooling returns it to its original state. For most thermoplastics, this brief thermal cycle does not permanently alter material properties.
Semi-crystalline materials, which might experience some crystallinity changes in the HAZ, typically show no measurable reduction in mechanical properties in this region. Any minor crystallinity variations that occur are confined to such a narrow band that they have no practical impact on component performance. The bulk material properties dominate mechanical behaviour, and the HAZ represents an insignificant fraction of the total cross-section.
Testing specifically designed to evaluate HAZ effects – such as microscopic examination, differential scanning calorimetry, and localised mechanical property measurement – has consistently shown that the zone does not represent a source of weakness or concern in properly processed joints.
Myth 5: Vibration Welding Shortens Product Lifespan
The Concern: Questions sometimes arise about whether vibration welded assemblies experience accelerated ageing, reduced environmental resistance, or shortened service life compared to alternative joining methods.
The Reality: Long-term durability testing and field performance data demonstrate that vibration welded assemblies match or exceed the service life of components joined by other methods. Automotive applications, where vibration welded components experience years of thermal cycling, vibration, chemical exposure, and mechanical stress, provide particularly compelling evidence.
Fuel tank assemblies, air intake manifolds, and ducting systems in vehicles routinely incorporate vibration welded joints that must maintain integrity throughout the vehicle's operational life – often 10-15 years or more. These components undergo extensive durability testing including thermal cycling between -40°C and +120°C, vibration testing simulating hundreds of thousands of kilometres of driving, and chemical resistance testing with fuels, oils, and coolants. Vibration welded joints consistently pass these demanding tests, demonstrating long-term reliability equivalent to the parent material.
The absence of adhesives, solvents, or foreign materials in vibration welded joints actually enhances long-term durability in many applications. Adhesive bonds can degrade over time due to environmental exposure, thermal cycling, or chemical attack. Mechanical fasteners create stress concentrations and potential corrosion sites. Vibration welded joints, being molecularly identical to the parent material, exhibit the same environmental resistance and ageing characteristics as the bulk plastic.
Myth 6: Material Contamination Weakens Welds
The Concern: Some engineers worry that surface contaminants, mould release agents, or atmospheric moisture compromise weld strength or create hidden weaknesses.
The Reality: Whilst contamination can affect weld quality if severe, the vibration welding process itself provides substantial self-cleaning action. The initial friction phase scrubs surfaces together, mechanically removing light surface contamination and oxide layers before significant melting occurs. This cleaning action is one reason vibration welding accommodates moderate levels of surface contamination better than some alternative joining methods.
Heavy contamination or inappropriate surface treatments certainly can compromise weld quality – but this is readily detected through visual inspection and quality testing. Contaminated welds typically exhibit visible defects such as incomplete bonding, excessive flash, or surface porosity. They fail quality tests during process development long before entering production.
Modern manufacturing practices including proper material handling, appropriate use of mould release agents, and controlled storage conditions minimise contamination concerns. When combined with the process's inherent cleaning action, contamination-related weakening is not a significant concern in properly controlled production environments.
Myth 7: Vibration Welding Introduces Internal Stress
The Concern: Engineers sometimes worry that the welding process introduces residual stress that could cause warping, stress cracking, or premature failure.
The Reality: Properly executed vibration welding introduces minimal residual stress compared to many other manufacturing processes. The controlled cooling under pressure allows stress relaxation as the material solidifies. The localised nature of heating means thermal gradients – the primary source of residual stress in plastic processing – are confined to a very narrow zone.
Compared to injection moulding itself, which creates substantial residual stresses through non-uniform cooling of the entire component, vibration welding's localised heating creates negligible additional stress. Components that survive injection moulding without stress-related failures are very unlikely to experience problems from the comparatively minor thermal effects of vibration welding.
Where residual stress could be a concern – such as with brittle amorphous materials in demanding applications – appropriate annealing processes can be employed after welding to relieve any accumulated stress. However, this is rarely necessary for typical applications using engineering thermoplastics.
The Scientific Evidence: Testing and Performance Data
Extensive testing across decades of industrial use has established vibration welding's ability to create durable, reliable joints without weakening plastic materials. Testing protocols employed include:
Mechanical Testing: Tensile strength, flexural strength, and impact resistance tests consistently show vibration welded joints performing at or above parent material strength levels. Failure modes typically occur in the base material rather than at the weld interface.
Long-Term Durability: Thermal cycling, accelerated ageing, and environmental exposure testing demonstrate that properly welded joints maintain integrity throughout expected service lives. Automotive qualification testing – amongst the most demanding in manufacturing – validates vibration welded components for use in safety-critical applications.
Microscopic Analysis: Optical and electron microscopy of cross-sectioned welds reveals continuous material structure across the interface with no voids, inclusions, or discontinuities. The molecular intermixing visible at high magnification confirms complete bonding.
Non-Destructive Testing: Ultrasonic inspection and other NDT methods employed on production components confirm consistent weld quality and absence of internal defects that could compromise performance.
Design Considerations for Optimal Results
Whilst vibration welding does not inherently weaken plastics, achieving optimal results requires appropriate design practices:
Material Selection: Choose materials suited to vibration welding characteristics. Most thermoplastics weld successfully, with semi-crystalline materials like polypropylene and polyethylene particularly well-suited to the process.
Joint Design: Employ appropriate joint geometries that facilitate material flow and bonding. Butt joints and shear joints represent the most common configurations, each offering specific advantages depending on application requirements.
Wall Thickness: Ensure adequate material thickness near the joint – typically a minimum of 2mm – to provide sufficient material for strong weld formation whilst accommodating the displacement that occurs during welding.
Part Support: Design fixtures that properly support components during welding, preventing unwanted movement whilst allowing necessary displacement at the joint interface.
Conclusion
The evidence overwhelmingly demonstrates that vibration welding, when properly executed, does not weaken plastic materials. The concerns underlying common myths about the technology stem from misunderstandings about the process mechanics and thermoplastic behaviour. The reality, supported by decades of industrial experience and extensive testing, shows that vibration welding creates joints equal in strength and durability to the parent material whilst offering significant manufacturing advantages.
For design engineers evaluating joining technologies, these facts provide confidence that vibration welding represents a robust, reliable solution for thermoplastic assembly. The technology's proven performance across demanding applications in automotive, aerospace, and industrial sectors validates its capability to create durable assemblies that maintain integrity throughout extended service lives.
At Xfurth, our extensive experience with vibration welding technology confirms what the scientific evidence demonstrates: properly designed and executed vibration welds do not represent weak points or compromise material performance. We encourage engineers with concerns about vibration welding to examine the evidence, consider the successful applications across industries, and consult with experienced suppliers to understand how the technology can benefit their specific applications.
The question should not be "Does vibration welding weaken plastic?" but rather "How can we optimise vibration welding to achieve the strongest, most reliable joints in our applications?" The answer to that question lies in proper material selection, appropriate joint design, and correct process parameter development – all areas where Xfurth's expertise can guide successful implementation.
