Top Joint Designs For Ultrasonic Welding: Pros And Cons

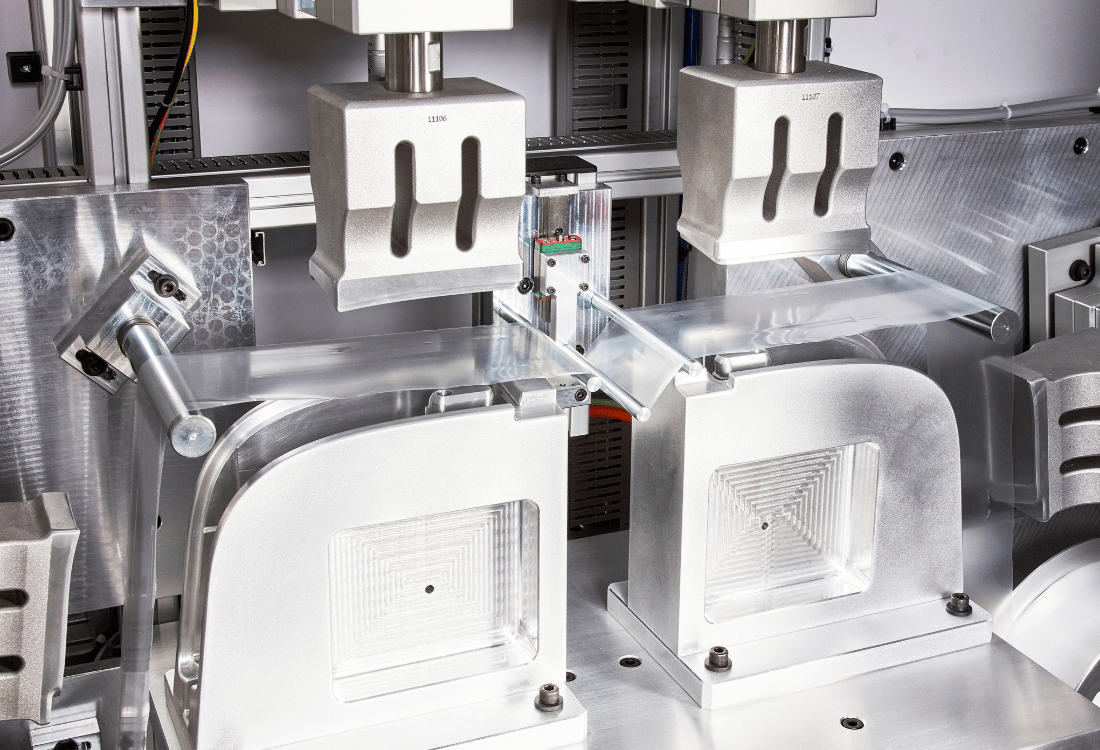

Ultrasonic welding is a fast, repeatable, and precise process for joining thermoplastics without the use of adhesives, screws, or solvents. Its effectiveness hinges not just on machine parameters, but on an often-overlooked detail: joint design. The geometry and features of the joint directly impact weld strength, aesthetics, and cycle efficiency.

This article explores the most widely used joint designs in ultrasonic welding — their structure, applications, and the practical advantages and limitations of each.

Butt Joint With Energy Director

Overview:
The butt joint is the most basic joint configuration, where two flat surfaces are brought together. On its own, this joint offers minimal energy concentration and is rarely used in ultrasonic welding. To address this, a small triangular or trapezoidal energy director is added to one of the surfaces. This raised feature focuses the ultrasonic energy into a specific point, generating rapid, localised heat that initiates the weld.

Advantages:
The addition of an energy director enables a fast, consistent melt profile. It is especially effective with amorphous thermoplastics such as ABS, acrylic, or polycarbonate, providing strong, reliable joints with minimal flash. It is also easy to incorporate into mould tooling, making it a cost-effective design for mass production.

Limitations:
The joint relies on precise moulding of the energy director. Variations in height, angle, or placement can lead to weld inconsistency or failure. It is also less effective with semicrystalline plastics, which melt and solidify over a narrow temperature range, demanding more controlled processing.

Step Joint

Overview:
The step joint is a variation of the butt joint designed to improve alignment and visual finish. It incorporates a recessed ledge on one component, allowing the mating part to sit partially inside. This not only assists in part positioning but also conceals the weld line and any flash, improving the cosmetic appearance of the final assembly.

Advantages:
The step joint provides automatic alignment and is particularly useful for parts that will be visible in the final product, such as enclosures or panels. Flash and melt residue are generally contained within the internal ledge, which maintains external part aesthetics. The joint can also accommodate an energy director at the base of the step for improved weld strength.

Limitations:
Tighter mould tolerances are required to ensure parts fit together correctly without gaps. The recessed design may lead to increased tool wear, and additional mould complexity can increase upfront tooling costs. Proper joint clearance is essential to ensure sufficient part collapse and weld strength during the ultrasonic cycle.

Shear Joint

Overview:
The shear joint is commonly used for welding semicrystalline thermoplastics such as nylon, acetal, or polypropylene. Instead of relying on an energy director, this joint creates friction between overlapping vertical walls. As one part is vibrated ultrasonically against the other, the frictional interface melts and forms a strong, hermetically sealed bond.

Advantages:
This joint design offers high-strength welds and is well-suited to applications that require structural integrity or fluid-tight seals, such as in automotive or industrial products. The overlap design also accommodates some tolerance variation without affecting weld performance.

Limitations:
It requires high precision in part fit and clamping, as the vertical surfaces must remain tightly engaged during welding. The larger weld area may also result in longer cycle times compared to energy director joints. Additionally, part design may be constrained by the need for tall sidewalls to achieve sufficient melt depth.

Tongue And Groove Joint

Overview:
This design includes a projecting tongue on one component that fits into a groove on the other. It ensures accurate alignment and increases the contact surface between the parts. The joint is often used for circular components or where rotational misalignment needs to be controlled.

Advantages:
Tongue and groove designs improve part positioning and repeatability. When combined with features like energy directors or shear interfaces, they offer strong welds and reduced cosmetic defects. They are particularly well-suited to applications like containers, filtration units, and cylindrical enclosures.

Limitations:
The joint must be carefully proportioned to avoid overfilling or underfilling the groove during collapse. Inadequate groove depth can reduce strength or trap flash on the exterior. The design also introduces additional complexity in moulding and part trimming.

Choosing The Right Joint Design

Joint design should never be an afterthought in ultrasonic welding. Instead, it should be aligned with material properties, product function, and performance expectations. Considerations include:

• The type of thermoplastic — amorphous vs. semicrystalline — as this affects melt flow and weldability.


• Part geometry and surface accessibility.


• Aesthetic requirements, particularly for consumer products.


• Seal integrity, especially for fluid-handling components.


• Tooling and production constraints, including part tolerance and process speed.



In many cases, hybrid joints — such as step joints with energy directors or shear joints with tongue-and-groove guides — provide the best balance of strength, aesthetics, and process control.

Final Thoughts

Well-engineered joint design is fundamental to the success of any ultrasonic welding application. Whether your priorities are mechanical strength, sealing capability, or visual finish, selecting the right joint geometry — and integrating it early into product design — ensures optimal weld performance and long-term product reliability.
