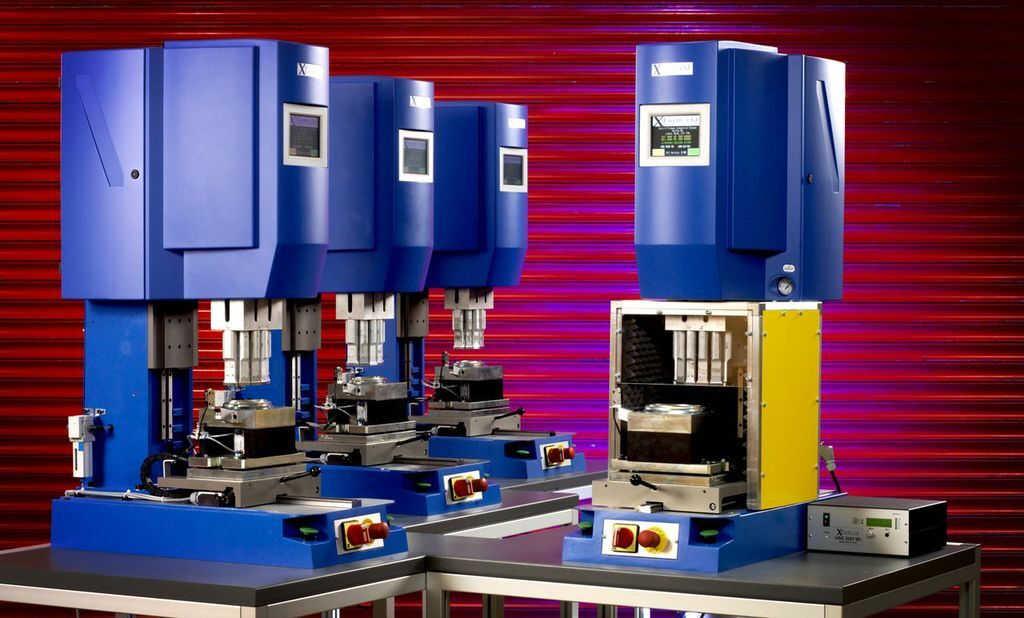

When selecting materials for ultrasonic welding applications, understanding the molecular structure of thermoplastics can mean the difference between a reliable, high-quality weld and a frustrating production challenge. Amongst the various classifications of thermoplastics, amorphous polymers consistently demonstrate superior performance in ultrasonic welding processes.
This article explores the scientific principles that make amorphous plastics the preferred choice for ultrasonic applications and provides practical guidance for material selection.
Understanding Molecular Structure
The fundamental distinction between amorphous and semi-crystalline plastics lies in their molecular arrangement. Amorphous plastics possess a random, disordered molecular structure with no defined geometric pattern. Think of it as resembling a bowl of cooked spaghetti – the polymer chains are tangled and interwoven without any organised structure. This randomised configuration directly influences how these materials respond to ultrasonic energy.
In contrast, semi-crystalline plastics contain regions of highly ordered molecular structures alongside amorphous regions. These crystalline zones have specific melting points and create distinct boundaries within the material. This ordered structure significantly affects how ultrasonic energy propagates through the material and how efficiently it converts to heat at the weld interface.
Superior Energy Transmission
The disordered molecular structure of amorphous plastics provides a critical advantage in ultrasonic welding: superior acoustic transmission. When ultrasonic vibrations pass through amorphous materials, the random molecular arrangement causes the sound waves to bounce and scatter throughout the material matrix. This scattering effect enhances energy distribution and increases the efficiency of heat generation at the weld interface.
The physics behind this advantage becomes clear when considering how ultrasonic energy travels through different materials. In amorphous plastics, the lack of crystalline boundaries means ultrasonic waves encounter fewer impedance mismatches as they propagate through the material. This allows energy to reach the weld interface more efficiently, requiring less input power to achieve adequate melting temperatures.
Semi-crystalline plastics, by contrast, contain crystalline regions that act as barriers to ultrasonic wave propagation. The organised molecular structure causes ultrasonic vibrations to resonate more uniformly, reducing the chaotic energy scattering that promotes rapid heating in amorphous materials. Consequently, semi-crystalline plastics typically require higher wattage equipment and more precisely controlled welding parameters.
Gradual Softening Characteristics
Another significant advantage of amorphous plastics lies in their thermal behaviour. Rather than exhibiting a sharp melting point like semi-crystalline materials, amorphous plastics soften gradually over a temperature range. This characteristic, known as the glass transition, occurs when the material transitions from a rigid, glassy state to a softer, rubbery state.
This gradual softening provides a wider processing window for ultrasonic welding. As heat builds at the weld interface, amorphous materials begin to soften progressively, allowing for better control over the welding process. Operators can more easily adjust parameters to achieve optimal results without the risk of sudden material state changes that can compromise weld quality.
The practical benefit becomes evident in production environments where slight variations in part dimensions, material properties, or environmental conditions are inevitable. Amorphous plastics accommodate these variations more readily, maintaining consistent weld quality across production runs. This forgiveness factor significantly reduces scrap rates and simplifies process development.
Far-Field Welding Capability
The superior acoustic properties of amorphous plastics enable far-field welding applications – a capability that expands design possibilities considerably. Far-field welding refers to configurations where the ultrasonic horn contacts the part more than 6mm from the actual weld joint. This allows for greater flexibility in part design, as the energy director or weld interface doesn't need to be directly beneath the horn contact point.
Semi-crystalline plastics generally require near-field welding, where the horn must be positioned within 6mm of the joint. This constraint can limit design options and complicate tooling requirements, particularly for parts with complex geometries or multiple weld locations.
The far-field capability of amorphous plastics proves particularly valuable when designing enclosures, housings, or assemblies where aesthetic considerations preclude visible horn contact marks near the weld seam. Engineers can position the horn contact point on a hidden surface or structural rib whilst still achieving effective welds at remote locations.
Common Amorphous Plastics for Ultrasonic Welding
Several amorphous thermoplastics have proven particularly successful in ultrasonic welding applications:
Acrylonitrile Butadiene Styrene (ABS) stands as perhaps the most commonly welded amorphous plastic. Its excellent acoustic properties, combined with good impact resistance and dimensional stability, make it ideal for automotive components, consumer electronics housings, and appliance parts. ABS welds readily with minimal flash and achieves bond strengths approaching the parent material.
Polycarbonate (PC) offers exceptional impact resistance and optical clarity, making it valuable for safety equipment, medical devices, and electronic components. Despite its toughness, polycarbonate welds effectively using ultrasonic energy, though it requires careful parameter control due to its relatively high glass transition temperature.
Polymethyl Methacrylate (PMMA), commonly known as acrylic, combines optical clarity with good weatherability. Whilst more brittle than ABS or polycarbonate, PMMA welds cleanly when appropriate joint designs are employed. It finds applications in lighting components, display cases, and medical devices.
Polystyrene (PS) represents one of the easiest materials to weld ultrasonically. Its low glass transition temperature and excellent acoustic properties allow for rapid welding cycles with minimal energy input. Applications include food packaging, laboratory equipment, and consumer products.
Modified Polyphenylene Oxide (PPO) and polysulfone (PSU) serve specialised applications requiring elevated temperature resistance whilst maintaining the welding advantages of amorphous structure. These engineering-grade materials find use in automotive under-bonnet components and medical sterilisation equipment.
Optimising Joint Design for Amorphous Plastics
The favourable welding characteristics of amorphous plastics allow for simpler joint designs compared to semi-crystalline materials. Energy directors – small triangular ribs that concentrate ultrasonic energy – perform exceptionally well with amorphous plastics. The typical energy director for amorphous materials measures 0.4-0.6mm in height with a 60-90 degree included angle.
Butt joints with energy directors represent the most common configuration, offering fast cycle times and minimal flash generation. Step joints provide additional benefits by concealing the weld line and containing any flash within an internal recess, improving aesthetic appearance for consumer-facing applications.
Shear joints, whilst less common with amorphous plastics, can be employed when hermetic sealing is required or when welding dissimilar amorphous materials. The overlapping walls of a shear joint create a larger weld area and provide multiple sealing surfaces.
Material Selection Considerations
When specifying amorphous plastics for ultrasonic welding applications, engineers should consider several factors beyond weldability. Additives and fillers can significantly impact welding performance, even in otherwise ideal amorphous materials. Glass fibres, whilst improving mechanical properties, can reduce acoustic transmission and create abrasive conditions that accelerate horn wear. Filler content should generally remain below 20% for optimal welding results.
Colourants and pigments require careful evaluation. Titanium dioxide, commonly used in white pigments, can act as a lubricant at concentrations above 5%, reducing the friction necessary for effective heat generation. Carbon black and organic pigments typically have minimal impact on weldability at normal loading levels.
Flame retardants present particular challenges, as they can comprise up to 50% of material weight in some formulations. High flame retardant content reduces the available thermoplastic material at the weld interface, requiring increased energy input and potentially modified joint designs to achieve acceptable bond strength.
Moisture content, whilst less critical for most amorphous plastics than for hygroscopic semi-crystalline materials like nylon, still warrants attention. Excessive moisture can create voids or porosity in the weld zone as trapped water vaporises during the welding process. Materials should be properly dried according to manufacturer specifications before welding, particularly for critical applications requiring hermetic seals or maximum strength.
Process Parameter Optimisation
The forgiving nature of amorphous plastics allows for relatively straightforward process development compared to semi-crystalline materials. Initial parameter settings can typically begin with moderate amplitude (60-80% of maximum), medium weld times (0.3-0.8 seconds), and standard pressure settings (0.2-0.4 MPa).
The wide processing window of amorphous materials means these parameters can often be adjusted over a fairly broad range whilst still achieving acceptable results. This characteristic simplifies troubleshooting and reduces the sensitivity to environmental variations such as ambient temperature or humidity changes.
Energy-based welding control works particularly well with amorphous plastics, as the gradual softening characteristic allows the control system to accurately detect when sufficient melting has occurred. Distance-based control can also be employed effectively, particularly for applications with critical dimensional requirements.
Conclusion
The molecular structure of amorphous plastics provides inherent advantages for ultrasonic welding applications that semi-crystalline materials simply cannot match. Superior acoustic transmission, gradual softening characteristics, and far-field welding capability combine to create materials that are not only easier to weld but also more forgiving in production environments.
For design engineers specifying materials for ultrasonic welding applications, amorphous plastics like ABS, polycarbonate, and polystyrene should be the default choice unless specific performance requirements necessitate semi-crystalline alternatives. The processing advantages translate directly to reduced development time, lower scrap rates, and more reliable production outcomes.
At Xfurth, our three decades of experience with ultrasonic welding technology have demonstrated repeatedly that proper material selection forms the foundation of successful welding applications. Understanding the science behind why amorphous plastics excel in ultrasonic welding empowers engineers to make informed decisions that optimise both product performance and manufacturing efficiency.
