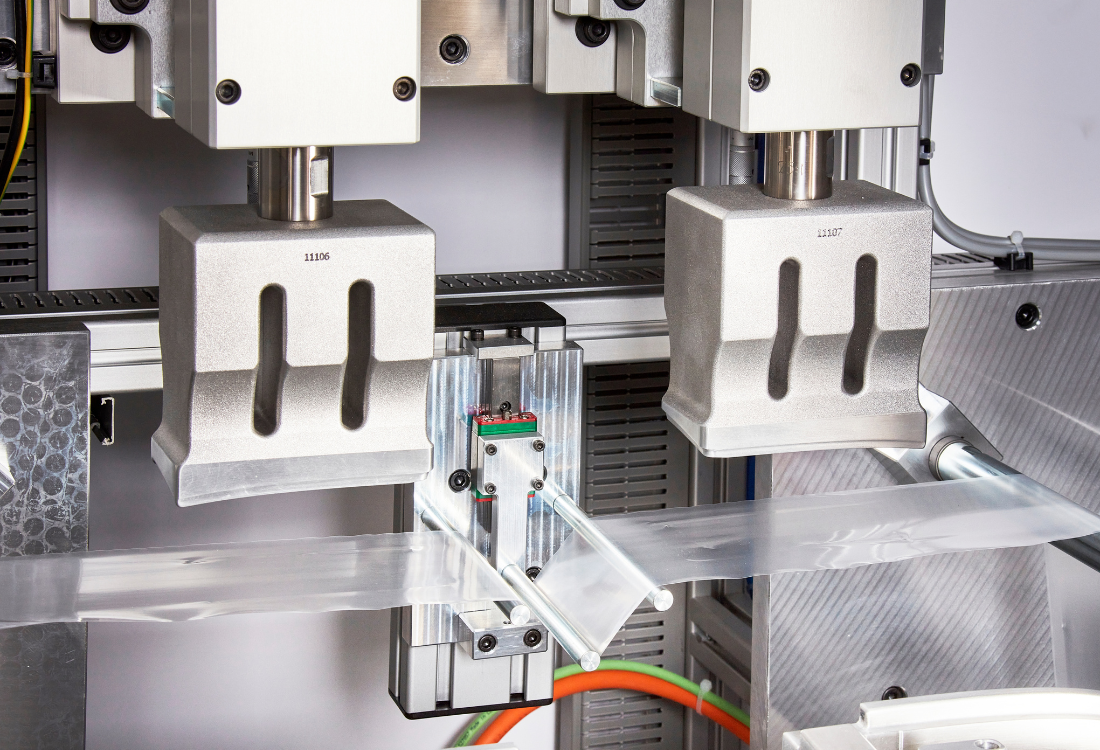

Ultrasonic welding is a highly efficient and precise method of joining thermoplastic components, widely used across the automotive, medical, consumer electronics, and packaging sectors.
This process harnesses high-frequency vibrations (typically 20-40 kHz) to generate localised heat at the interface between parts, creating molecular bonds without external adhesives or fasteners. While the technology is well-established, manufacturers often encounter performance issues that can affect weld quality, production throughput, or part integrity.
Addressing these problems requires not only an understanding of the ultrasonic welding process itself, but also how various design, material, and machine settings interact. Below, we outline five of the most common challenges in ultrasonic welding—and how to effectively resolve them.
1. Inconsistent Weld Strength
Problem:
Variability in weld strength is one of the most common quality issues, particularly in mass production environments. It can lead to component failure, customer complaints, or costly rework.
Causes:
Inconsistent part dimensions, unstable clamp force, or poorly controlled energy input can all contribute. Material variation, such as recycled content or inconsistent resin batches, can also affect weldability.
Solution:
The key to achieving consistent weld strength lies in process control and material management. Implementing closed-loop control systems allows for dynamic adjustment of energy delivery, ensuring process stability across production runs. Precision tooling maintains consistent part alignment and contact pressure, which is crucial for uniform energy transfer. Conducting incoming material inspections helps verify resin consistency before production begins. For critical applications, pre-weld part verification systems, such as presence sensors or dimensional checks can prevent attempting to weld non-conforming components, saving time and resources.
2. Flash And Part Deformation
Problem:
Flash—excess molten plastic expelled at the weld interface—is not only unsightly but can interfere with downstream assembly. Deformation or collapse beyond the design intent may also compromise dimensional tolerances.
Causes:
Excessive amplitude, energy input, or time can overheat the weld area, pushing melted material out beyond the joint. Inadequate joint design (e.g., no flash trap) may exacerbate the problem.
Solution:
Resolving flash issues typically requires a multi-faceted approach. Start by reassessing the welding parameters—amplitude, weld time, and pressure—and reduce them in controlled increments to find the optimal balance. Incorporating a flash trap in the joint design creates a recess to contain expelled material, keeping it away from critical surfaces. Reviewing the horn and fixture design ensures even pressure distribution across the weld interface. For high-end applications with stringent aesthetic requirements, consider post-weld trimming or transition to a joint design that naturally conceals flash, such as a step joint configuration.
3. Poor Weld Appearance Or Surface Cracking
Problem:
Surface-level cracking or unsightly weld seams can compromise the perceived quality of the finished product, particularly in visible assemblies like consumer electronics.
Causes:
Incorrect energy levels, welding thin-walled parts, or using brittle thermoplastics can lead to localised overheating, internal stress, or surface fractures.
Solution:
Improving weld appearance begins with adjusting process parameters. Lowering the welding amplitude and time helps avoid overheating that can cause discolouration or crazing. Switching to a ramped energy profile gradually increases energy input, reducing thermal shock that often leads to cracking. Material selection plays a crucial role as well; amorphous plastics typically weld more cleanly than semicrystalline alternatives in cosmetic applications. For direct horn contact areas, using polished or coated horn surfaces minimises friction and surface marring, resulting in a cleaner final appearance.
4. Weak Or Incomplete Welds
Problem:
Parts that appear welded but later separate under light stress often indicate an incomplete or cold weld, compromising product reliability.
Causes:
Undersized energy directors, poor horn contact, or insufficient weld time/pressure can prevent proper material melt and bond formation.
Solution:
Ensuring complete welds requires attention to both equipment setup and joint design. Begin by checking for proper horn contact and alignment, as even slight misalignment can drastically reduce energy transmission to the weld interface. Consider increasing the energy director height or adjusting its angle to enhance melt initiation, particularly for more difficult-to-weld materials. Re-optimising the weld time and hold pressure ensures complete material flow and bonding throughout the joint. For critical applications, conducting microscopic cross-section analysis can verify bond depth and integrity, providing valuable feedback for process refinement.
5. Tool Wear And Horn Damage
Problem:
Over time, horns and fixtures wear down or become damaged, affecting weld consistency and reducing overall process reliability.
Causes:
High-frequency vibration, constant contact with abrasive materials, and misaligned tooling can all contribute to premature wear.
Solution:
Prolonging tool life requires a systematic maintenance approach. Implementing a preventative maintenance schedule allows for regular inspection and service of horns before quality issues emerge. Using hardened or coated tooling, such as titanium horns with nitriding treatment, significantly extends life spans in high-volume production environments. Well-trained operators can detect early signs of tool misalignment or fixture fatigue, such as unusual noise or vibration patterns that precede complete failure. For sophisticated production lines, automated horn conditioning routines can monitor and maintain optimal tool performance throughout its service life.
Maximising Ultrasonic Welding Performance
Ultrasonic welding offers significant advantages in manufacturing efficiency, but achieving consistent quality requires addressing these common challenges proactively. Success depends on three key factors: proper process control through monitoring and feedback systems; thoughtful joint design that accommodates material behaviour; and regular equipment maintenance to ensure optimal performance.
Beyond troubleshooting, manufacturers should adopt a design-for-manufacture mindset that considers ultrasonic welding requirements from the earliest stages of product development. This approach not only minimises the challenges discussed above but also unlocks the full potential of ultrasonic welding technology—delivering stronger bonds, faster cycle times, and more reliable products.
By understanding and methodically addressing these five common ultrasonic welding challenges, manufacturers can reduce defects, minimise downtime, extend tool life, and ensure consistently high-quality results that meet increasingly demanding production standards.
